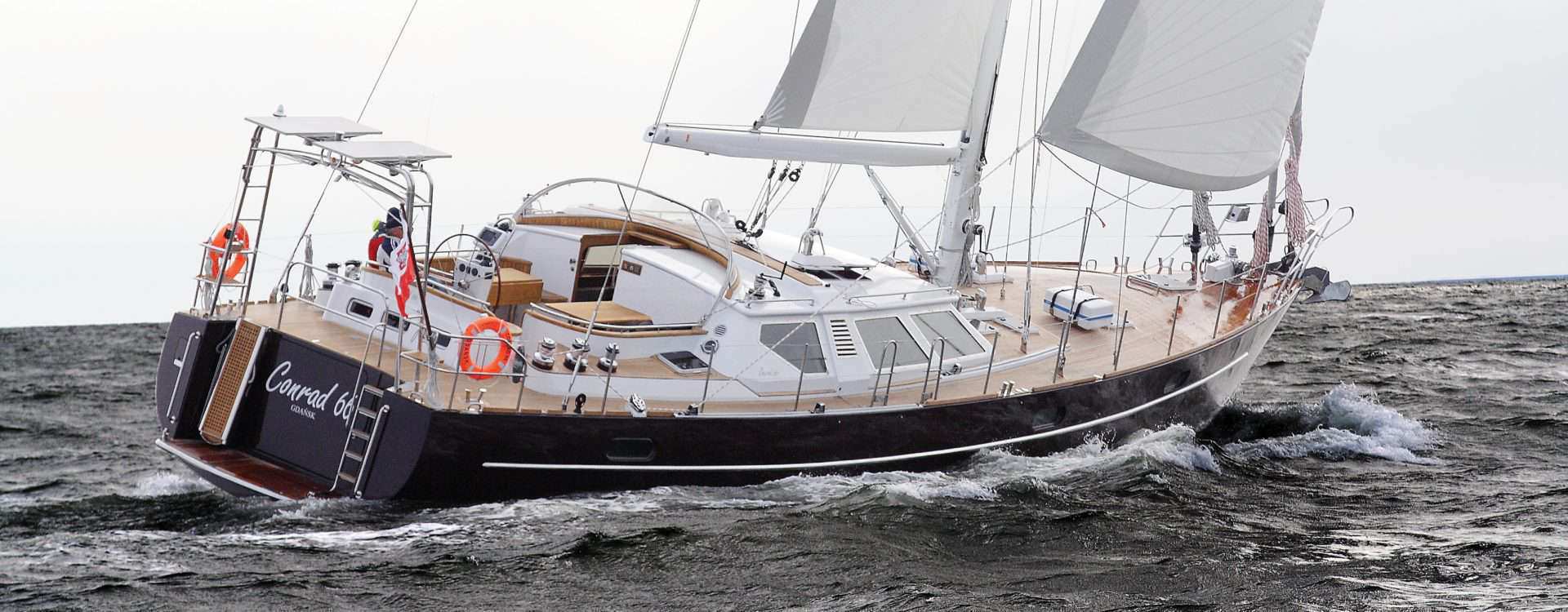

Conrad 66 Medea-She is an elegant sailing yacht designed especially for the Conrad Shipyard. It was our intention to create beautiful yacht of noble traditional style for experienced sailors and their far and frequent journeys.
Conrad 66-Medea is not only the yacht giving satisfaction of sailing and exceptional comfort of living but also strong ship with the highest possible level of sea worthiness.
Request Quote
Information Request
Builder Conrad Shipyard, 2007
Naval architect Juliusz Strawinski, Yacht Studio Strawinski
Interior design Conrad Shipyard team
Deck design Juliusz Strawinski / Conrad Shipyard team
Project manager Jerzy Czarniawski
Type Sloop rigged sailing yacht
Classification Lloyd's Register 100 A1 SSC Yacht Mono G6 hull class
CE category A certificate issued by LRS
MCA certificate issued by LRS
Hull/Superstructure material Steel
Length overall Loa 20.16 m
Length waterline Lwl 18,33 m
Beam B 6,06 m
Freeboard Fb 1,54 m
Draft (centerboard up) T 2,05 m
Draft (centerboard down) T 4,09 m
Displacement D 57.50 t
Ballast G 8.00 t
Tanks volumes Fuel tanks 2 190 l
Fresh water tanks 3 900 l
Sewage tanks 1 900 l
Drinking water 200 l (stainless steel)
Spars Sparcraft Custom stoway profile 15083
Sails maker De Vries Sails Custom
Sail area (triangles 100%) Sa = 198,5 sq . m
Mainsail 85,6 sqm
Genoa 130,1 sqm
Light genoa 149,5 sqm
Inner jib 53,0 sqm
Deck gear Sheet winches Harken 24V
Harken manual
Boom control winches Andersen 24V compact type
Running rigging Gleistein Gemini X type
Furling Genoa Facnor 24V
Light Genoa Facnor 24V
Inner jib Facnor manual
Main sail Facnor in-mast-furling 24V
Propulsion engines Yanmar 2 off 160 hp @ 3 300 rpm
Gearboxes ZF 2 off 45A type
Shaft lines Amartech 2 off 40 mm
Propellers Amartech 2 off 4-bladed, folding type
Performance Max speed on engines 10 kn
Cruising speed on engines 8,5 kn
Cruising speed on 1 engine 7,5 kn
Range 2 engines @ 8,5 kn 800 Nm
Range 1 engine @ 7,5 kn 1 400 Nm
Generator Kohler 13 kW 50Hz
Electrics Custom 12V / 24V / 230V
Watermaker Schenker 1 440 L/day
HVAC Webasto 72.000 BTU
Bow thruster Vetus 220 kgf, 24V
Burglar alarm Custom System ADT
Fire detection Custom System Tyco
Paint system Hull outside International
Hull inside Hempel
Furniture varnish Hesse-Lignal
Tender Sportis MC3100 (for 4 people)/Johnson outboard engine 15HP
